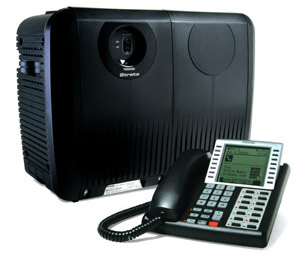

Designed for small to medium-sized enterprises, Toshiba Strata CIX100 lets you work exactly as you need today while giving you the ability to increase capability as you grow.

Supports up to 112 ports, can be deployed as either a legacy system or an IP enabled system.

Provides migration for the existing users of Toshiba Strata CTX and even the classic Strata DK systems.

Extends functionality wherever you leave your desk with a Toshiba Softphone on Laptops, pocket PCs or Tablet PCs.

IP Technology
Strata CIX100 provides all the features and benefits of our traditional systems with enhanced IP based adaptability capabilities, making it the most efficient, user-friendly and customizable system in the market. With Strata CIX, the user has a choice of mixing and matching the technologies, creating a traditional system, IP enabled System or a mixture that best serves your needs for future expansion.

Migration Plan
Users of the existing Strata CTX systems and even the classic Strata DK systems can migrate to the new Strata CIX systems while retaining much of their existing equipment like the Toshiba DKT2000 and Toshiba DKT3000 series Digital Telephones, trunk and station cards, thereby protecting some of the existing infrastructure investment in their initial systems.

SD Card Memory
Strata CIX System has a built-in slot for the SD Card (32MB to 256MB) which is commercially available in retail stores. With the SD Card in place, programming data can be backed up and restored, ensuring maximize uptime for business operations. In addition, with the SD card, uploading of software upgrades and other maintenance functions can be carried out with ease.

1) IP Communication

Simple and Cost Efficient
In today's business world, emphasis on information has never been greater. The issue to address is how to gain access to information without compromising on the bottom line. Toshiba is the trusted name to deliver IP Communication solutions, with its Strata CIX Systems.

IP Communications or IP Telephony is simply the transport of telephone calls over the Internet. The main driver of its evolution in the telecommunication world is its cost savings. By routing long distance calls over Internet, end-users can leverage on the flat Internet rate instead of the usage-based PSTN rate.

Toshiba IPT5000 Series
Toshiba IPT5000 Series offers a wide range of functionality that caters to the needs of IP communications.

Integrated Gigabit Ethernet switch for fastest access to high speed network connections

Large, backlit display for superior readability in variable light environments

Progarmmable one-touch buttons for fast access to calling functions

Full-duplex speakerphone

HTML and Java support with customizable applications

Integrated Headset Interface

Toshiba SoftIPT
Strata CIX maximizes customers' Wireless Local Area Network (WLAN) to deliver cost effective mobility solutions.

Toshiba Soft IPT is an IP Telephony client that works with a laptop, desktop PC and smartphone.

Support Windows XP Professional, Windows Vista and Windows 7

Operates like a Toshiba digital telephone with the same functionality and can be connected to CIX via Intranet, Internet or Wireless

With SoftIPT installed on laptop or smartphone, user can enjoy true mobility with the same functionality of desktop telephone

2) Universal Call Distribution
Strata CIX system is equipped with a built-in UCD, which provides call flow to distribute calls more efficiently for your customers that have different needs and processes. UCD delivers an intelligent service based on the simplified Distributed Hunt feature that supports 560 agents. It allows all the extensions to be ready and establishes for call handling, enabling efficient utilization of your customer service resources. Incomings calls are answered by an Auto attendant or directly routed to the UCD. If the agents are busy, the incoming calls can be routed to the next available agent on a per-group basis.

Universal Call Distribution (UCD) presSimple and Cost Efficientents many benefits for organizations for maximizing productivity and ensuring quick, efficient call handling. They have become an integral part of an organization's strategy to provide efficient, flexible self-service transactions to all customers.

3) Strata CIX IP Attendant Console
Processing incoming calls with speed, efficiency and accuracy is critical for businesses with high call traffic volumes. The CIX IP Attendant Console makes it possible and simple to provide cost-effective solutions for any small to medium-sized businesses. It is designed to streamline your operations and increase staff productivity by leveraging the converged VoIP. It takes productivity to a new level by allowing the operators to work, see, hear and interact remotely.

With a full range of IP telephone models, 8, 10, and 20 programmable button speakerphones, you can provide your team with the exact equipment they need, while networking them on a single CIX system.

Strata CIX system enables you to seamlessly integrate up to four consoles, dramatically increasing your call handling capabilities by automatically distributing incoming calls load to multiple attendants

4) My PhoneManager
Toshiba new personal administration tool, My PhoneManager gives individual users the ability to program various features on their telephone through PC's web browser. This gives users more control and reduces your system administrator's workload.

Key features

Web browser-based application

Administrator support is reduced because users can program their own telephones, such as speed dial numbers, "Do not disturb" function and even their name on the LCD display

User-friendly with quick and easy updates which provides greater flexibility

5) Caller Number Display
Caller Number Display identifies the originating party of a public network call. The name and telephone number of the calling party displays on the ringing telephone's LCD. Incoming calls with Caller ID or Automatic Number Identification (ANI) information may be optionally recorded into a rolling list for individual stations. Station users with LCD displays can access this list to select and redial these calls. Caller ID service from the carrier must be subscribed on analog CO lines or IDA-P Lines in order to receive calling number and name into the Strata system.

Caller ID lists can include the number, name (if provided), time and date of the call, and status of the call (answered, abandoned, or redirected). Digital stations are assigned memory for creating the Call History.

Cabinet Specification

Maximum Capacity

Base Cabinet	1
Expansion Cabinet	1
CO Lines (CLID)	64 (Maximum)
Stations	72 (Maximum)

Dimensions

	Height	Width	Depth	Weight
Base Cabinet	37.1 cm	30.2 cm	25.9 cm	8.8 kg
Base + Expansion Cabinet	37.1 cm	50.6 cm	25.9 cm	15.7 kg

* Weight includes the processor PCB in Base Cabinet and Four Universal PCBs in each cabinet.

  Electrical Requirements

AC Input	120 VAC or 220 - 240 VAC
AC Frequency	50 / 60 Hz
Power Consumption	120 VAC: 216 Watts (Maximum)
Per Cabinet	240 VAC: 168 Watts (Maximum)

Operating Environment

Operating Ambient Environment	0°C - 40°C
Operating Humidity	20% - 80%

Important Notes :

Strata is registered Trademark of Toshiba Corporation.

Specifications subject to change without prior notice.

Some options may require customer supplied equipment.

Some features may not be applicable in certain countries
